Passive Autocatalytic Hydrogen Recombiner

The Passive Autocatalytic Hydrogen Recombiner is a safety protection device designed for environments containing hydrogen gas mixtures. It removes hydrogen through a catalytic chemical reaction. The device consists of a stainless-steel enclosure and slide-out catalyst modules. Heat generated by the hydrogen–oxygen recombination reaction drives natural convection, creating a continuous “chimney effect.” The entire unit operates without any external power supply or mechanical power source, ensuring safe and reliable performance. It is widely applicable to enclosed and confined spaces, providing industrial environments with a proactive hydrogen mitigation solution.

Product Features

Passive Design for Zero-Energy Operation

The device relies entirely on heat generated by the chemical reaction to drive airflow circulation, requiring no power supply, fan, or other external power source. It continues to operate normally even under extreme conditions such as a power outage, significantly enhancing inherent system safety and operating economy.

Optimized Aerodynamic Structure for an Enhanced Chimney Effect

The top of the enclosure features an inverted-pyramid flow guide and three outward-facing exhaust grilles. This design effectively reduces convective resistance, optimizes airflow distribution, and promotes the formation of a strong chimney effect, thereby improving hydrogen removal efficiency.

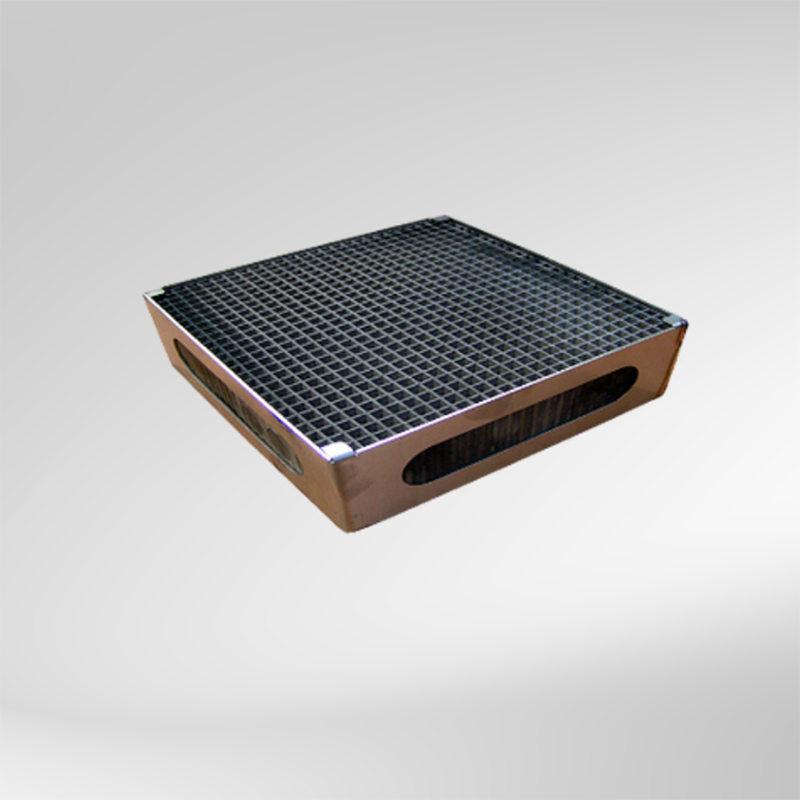

Slide-Out Modules for Easy Maintenance

The catalyst assembly adopts a slide-out drawer structure secured by a safety lock. Users can quickly replace, inspect, or maintain the catalyst without dismantling the entire enclosure, greatly reducing the complexity of long-term operation and maintenance.

High-Efficiency Precious-Metal Catalyst

The catalyst support features a stainless-steel honeycomb structure with a large specific surface area and low airflow resistance. The catalyst is synthesized using platinum- or palladium-based precious metals and produced through mature coating, drying, and sintering processes, ensuring high catalytic activity and a long service life.

Downloads

Related Articles Related

Product Appraisal Meeting for the “Hualong One Severe Accident Containment Hydrogen Concentration Monitoring System” Successfully Held 2026-07-02
Kainte’s CNPDC/KNT-HMS Containment Hydrogen Concentration Monitoring System, Hydrogen Sensor, and Hydrogen-Sensitive Element Technologies Have Been Granted Invention Patents by the China National Inte 2026-07-02
Kainte Corporate Culture 2026-07-02
About Kainte 2026-07-02

Product Details

Product Specifications

Operating Principle

The Passive Autocatalytic Hydrogen Recombiner is generally suspended near potential hydrogen leakage points or in areas where hydrogen is likely to accumulate. When the gas mixture comes into contact with the catalyst module at the bottom of the device, hydrogen and oxygen undergo a recombination reaction on the precious-metal catalyst, producing water or water vapor. The heat generated by the reaction causes the gas to expand and rise, creating natural convection within the enclosure. Together with the optimized flow-guiding structure at the top, the gas is discharged through the upper openings while surrounding hydrogen-containing gas is continuously drawn in from the bottom, forming a sustained and highly efficient hydrogen removal cycle.
